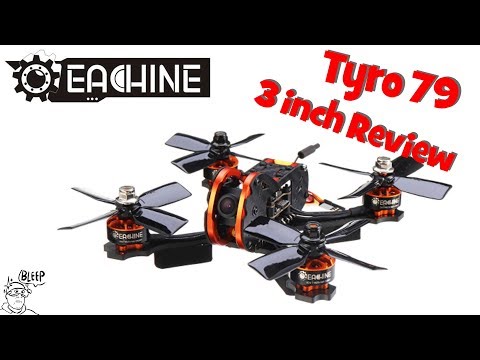

Eachine Tyro 79 Little 4s Monster

TYRO79 Link:
Don't for get to get a receiver
Frsky XM++ Link:
Support Grumpy Trev on Patreon
Help support this channel
Through affiliate links (this helps me out and doesn't cost you anymore if you shop via these links!)
Banggood_Link
GearBest_Link
MY FPV GEAR
FrSky Taranis X-LITE
Goggles - Aomway Commanders
Battery Charger HTRC T240 DUO
Backpack Realacc Backpack
TS100 Soldering Iron
********************************
FYI
These are affiliate or campaign links and the above product was sent for free.
If you dont like it, feel free to just google search the product or store and
get the link that way. But if it doesn’t bother you these links help support
the channel and also help vendors track the impact of my videos.
******************************************************************************
140mm Racing Frame Kit
Wheel base: 140mm
Frame arm thickness: 3mm
Upper plate thickness: 1mm
Side plate thickness: 1mm
Frame kit material: 3K carbon fiber & CNC 6065 aluminium
1607 2800KV 2-4S Brushless Motor
KV: 2800KV
Lipo cell: 2-4S
Weight: 17.8g (includes wires)
Output shaft length: 14mm
Maximum pull: signal 630g (4S 3030 4-blade propeller)
Maximum power: 350W
Configu-ration: 9N/12P
Mounting holes distance: 12*12mm
Mounting holes: φM2
Bearing: NSK
N52 Strong NdFeB Magnet
Recommend propeller: 3 inch
4 IN 1 20A BLHeli_S ESC
Continuous current: 20A
Peak current: 25A (10S)
BEC output: no
Input voltage: 2-4S
Main control chip: 48mhz EFM8BB2
Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125
MOS: 3*3
MOS type: vs3610ae 30v64a
Customized F4 Flight Controller
Main control chip: STM32F411
Sensor: ICM20602 6-axis
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
Mounting holes distance: 20*20mm
Weight: 24g
PID circulation rate and refresh rate can up to 32kHz
Supports Betaflight/cleanflight/inav firmware
700TVL CMOS Camera
Case size: 19mm*19mm
Weight: 9.5g
Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)
Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)
Signal system: PAL/NTSC switchable
Resolution ratio(horizontal center): 700TVL
Video output: 1.0Vp-p/75Ω
Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB
White balance: off
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: inter-sync
Camera lens: standard 2.1mm
Lens operating voltage: DC 5-12V
Working current: 70mA (low power consumption)
Working temperature: -20℃~-60℃
Humidity: 0%~98%
5.8G 40CH 0mW/25mw/100mw/200mw switchable VTX
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)
Make sure the antenna is installed at the output end before powering up to avoid damaging internal components.
3030 4-blade propeller
Material: PC
Mounting hole: 5mm
Center thickness: 6mm
Quantity: 2 pairs
Color: black, red, yellow, green
Weight: 5g a pair
Delivery color randomly
Lipo Battery
Not included
Recommend 2-3S 450-650mah
Package included:
1 x 140mm racing frame kit
2 x 1607 2800KV brushless motor CW
2 x 1607 2800KV brushless motor CCW
1 x 4 IN 1 20A BLHeli_S ESC
1 x Customized F4 flight controller
1 x 700TVL CMOS camera
1 x 5.8G 40CH 0mw/25mw/200mw switchable VTX
2 x 3030 4-blade propeller CW
2 x 3030 4-blade propeller CCW
