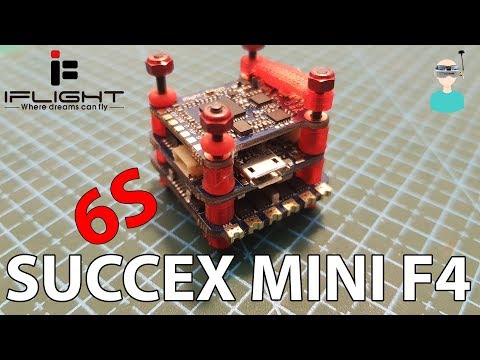

iFlight SucceX F4 Mini Tower - Overview & VTX Test

► SucceX F4 Mini Tower:
- iFlight:
- Banggood:
► Wiring Diagram:
╔════╡My Gear╞═════════════════════╡
║ ►Goggles - FatShark HDO -
║ ►RX Module - Furious True-D:
║ ►Radio - Taranis X9D:
║ ►Battery Charger - Hobbymate D6 Duo Pro:
║ ►Lipo Batteries:
╚════════════════════════════════╡
╔═╦╗╔╦╗╔═╦═╦╦╦╦╗╔═╗
║╚╣║║║╚╣╚╣╔╣╔╣║╚╣═╣ →
╠╗║╚╝║║╠╗║╚╣║║║║║═╣ I Really Appreciate Your Support!
╚═╩══╩═╩═╩═╩╝╚╩═╩═╝
●▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬●
Find Me On Facebook
►
Instagram:
►
Please consider supporting my channel by using my affiliated links:
* Banggood:
* HobbyCool:
* Gearbest:
It doesn't add any extra cost to you and will help me to grow my channel and bring you high quality updated content.
Thanks in advance!
Description:
iFlight SucceX F4 Mini Flight Controller 35A Blheli_32 2-6S ESC 5.8G 25/100/200mW Smartaudio VTX
Features:
* STM32 F405 MCU FC w/OSD, integrated MPU6000 accelerometer and gyro;
* Plug-in connection, pin header design, easy to install and disassemble;
* BLHeli-32-bit 35A 4-IN 1 ESC
* Compact size 26*26*21mm
* Super-lightweight 18.6g(including screws,aluminum column & nuts)
* Switchable 0/25/100/200mW 48CH VTX
SucceX mini F4 Flight Controller Specs
- MCU: 100MHz STM32F450
- IMU: MPU6000 gyro/accelerometer (SPI)
- Integrated LC Filter
- Input Voltage: 2-6S Lipo
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V@3A
- Size: 26x26mm board, 20mm mounting holes (M2)
- VCP, UART
- WS2812 Led Strip: Yes
- Beeper: For active 5V buzzer
- SBUS input: No
- Target: omnibus
SucceX Mini 35A 2-6S 4 in 1 ESC Specs
- MCU:STM32F051
- Current Sensor: no
- Input:2-6s lipo
- Installing Hole: 20x20mm, M2
- Target: iFlight-BL32-4IN1
- Constant:35Amps
- Burst:45Amps
- Dimensions:31*31mm(including the power pads)
- Mounting Holes:20*20mm
- Supports Dshot1200, Proshot,Oneshot,Multishot
Succex Mini VTX Specs:
- Input voltage: 5-36V D
- Channel: 48
- Power transmission: 0mW / 25mW / 100mW / 200mW
- Size (mm): 24 * 26 mm
- Mounting Holes Dimension: 20mm x 20mm
- Connector type: IPEX Connector
- BEC Output: 5V/1A for Camera of FC
- Antenna: IPEX
- Traditional button + LED control
- Smartaudio
Package included (Pre-built as stack):
- 1 x SucceX mini F4 Flight Controller
- 1 x SucceX Mini 35A 2-6S 4 in 1 ESC
- 1 x Succex Mini VTX
- 1 x Cable Set
