Main Features:
STM32F303RCT6 32-bit Processor
12M / 10PPM crystal oscillator
Option for integrated with DSM2 compatible 7CH receiver
Type X is with DCDC boost ( output 5V / 500mA ), it can supply power for outside device
Independent ports for IIC, GPS, PPM / DSM / SBUS receivers
Supports both Baseflight firmware and Cleanflight firmware
Can work with 1S and 2S LiPo battery
Type X is with 1.5mm pitch port
Specifications:
Item name: flight control
Working voltage: 3.3 - 4.5V or 5 - 10V
Receivers supports: PPM, DSM2, DSMX, SBUS
LED lights meaning:
Red LED - power; blue LED - flying mode; green LED - unlock
How to connect a receiver:
There is an RX-S port ( 1.25mm 3P ) which is special for connecting an outside receiver, it supports signal input of PPM, DSM2 / DSMX, SBUS, it also support 3.3V or VIN output ( Note 1 ), in order to connect an outside receiver, short connecting pads on RX-S and changing type of receiver on GUI at the same time is the way
Notes:
( 1 ) When output is VIN, and VIN >5.5V, please make sure if the outside receiver supports 5.5V or more, or the outside receiver may be burnt
( 2 ) As it gets an integrated receiver, as soon as the integrated receiver is set to output banned ( RF circuit of the integrated receiver won't work at the moment ), the outside receiver can work without problem
Specification
General |
Type: Flight Controller |
---|---|
Dimension and Weight |
Product weight: 0.007 kg
Package weight: 0.010 kg Product size (L x W x H): 6.80 x 5.60 x 0.80 cm / 2.68 x 2.2 x 0.31 inches Package size (L x W x H): 8.40 x 6.30 x 1.00 cm / 3.31 x 2.48 x 0.39 inches |
Package Contents |

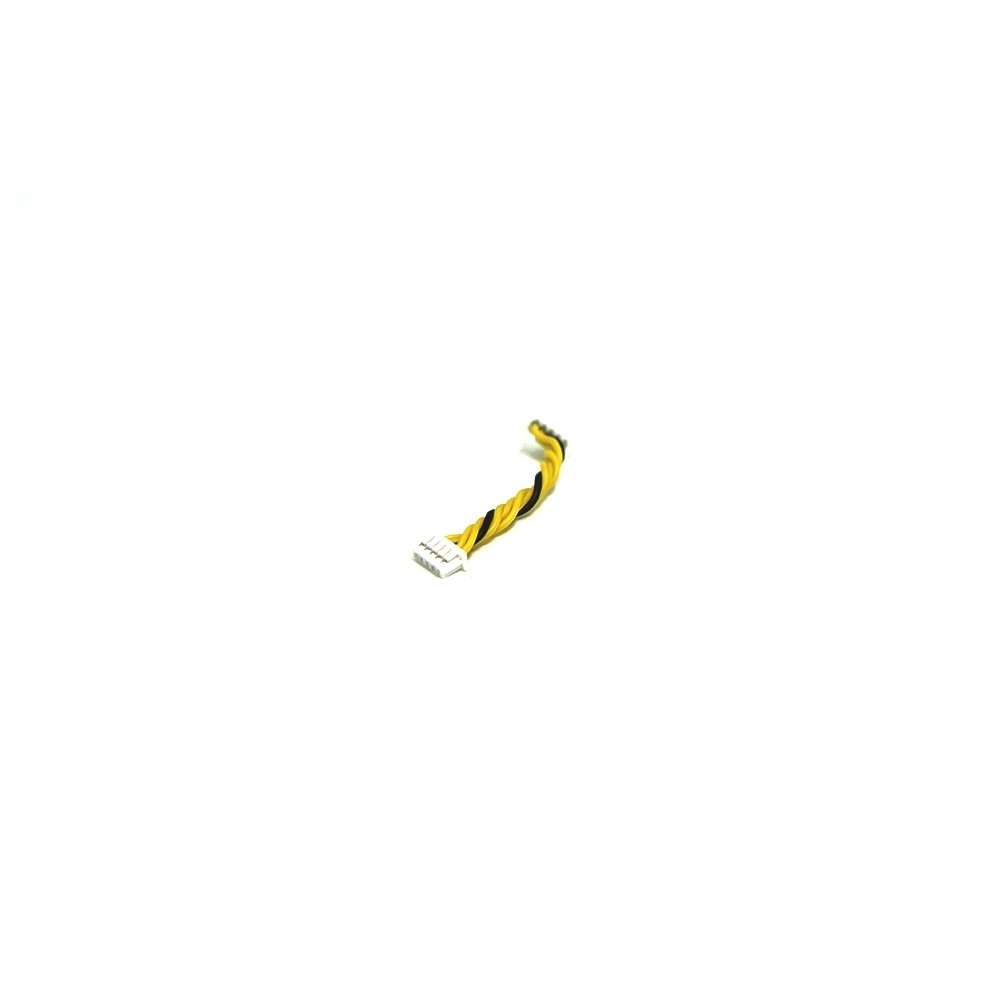

Package Contents: 1 x Flight Controller, 1 x Connecting Cable |
