Rcharlance Space Gear GT140mm 5.8G FPV Racing Drone BNF/PNP Omnibus F4 Flight Controller 28A Blheli_S ESC - 166.00 €

Rcharlance Space Gear GT140mm 5.8G FPV Racing Drone BNF/PNP Omnibus F4 Flight Controller 28A Blheli_S ESC
Seller: Banggood,
Free shipping aviable, Registered postage from 25 €


Space Gear GT145mm FPV Racing Drone BNF/PNP Omnibus F4 Flight Controller 28A Blheli_S 4 In 1 ESC







Specification
Brand name Space Gear
Item name GT140mm

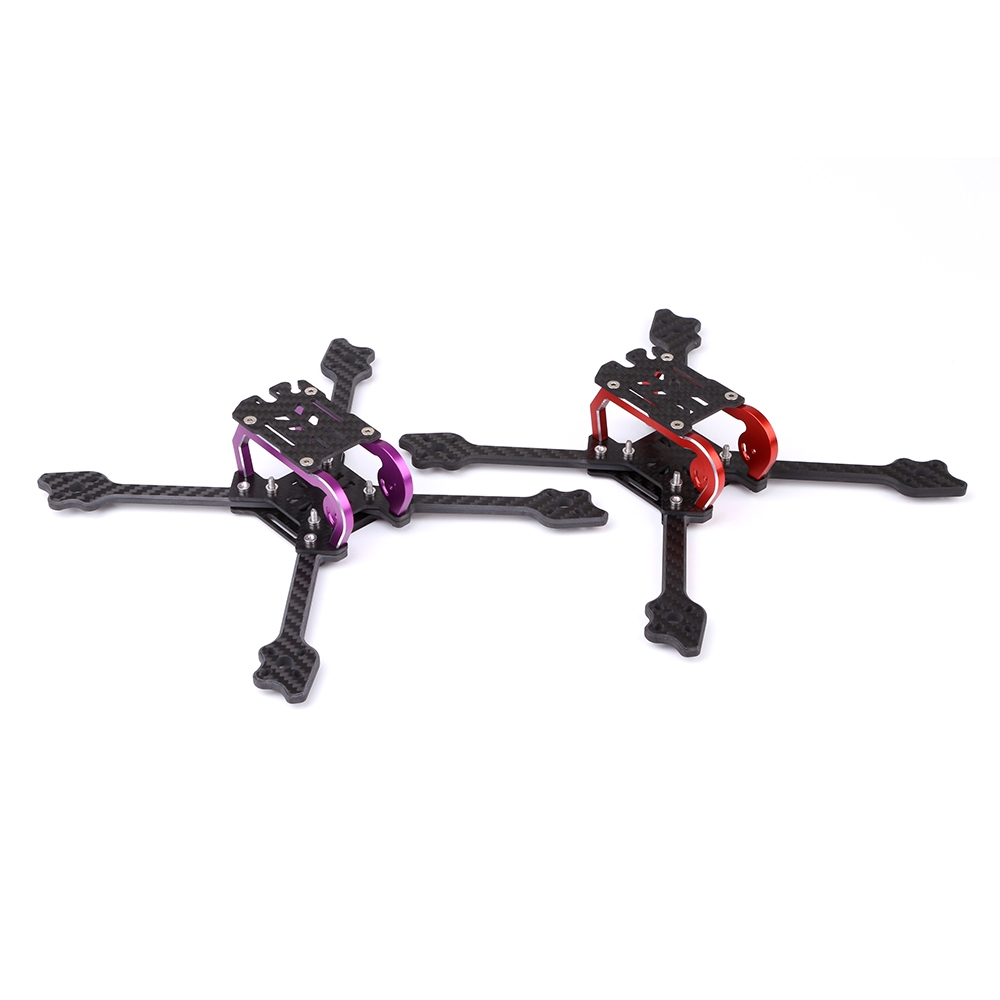

Frame Kit Wheelbase: 140mm
Arm Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Side Plate Thickness: 1.5mm
Material: Carbon Fiber
Omnibus F4 Flight Controller

IMU: MCU6000
CPU: STM32F405RGT6.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Support Subs/PPM/DSMX receiver

Rcharlance 28A 2-4S Blheli_S 4 in 1 ESC Input Voltage: 2-4S Lipo battery
Constant Current: 28A
Peak Current: 30A
BEC Ouput: NO
Firmware: BLheli_S 16.6
Size: 27x27mm (main board)
31x31mm ( including pad)
Installing Hole: 20x20mm, M2
CPU: SILABS EFM8BB21 48MHZ
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse

Rcharlance Micro FPV Transmitter

Output power: PIT/25mW/100mW/200mW/350mW switchable
Control mode:BFOSD control(RX)/button
BAT: 7-26V,BEC 5V-1A
240mA----350mW
Video system: NTSC/PAL
Antenna: IPEX
Frequency: 5.8GHz 6 bands 48 channels
Size: 24*24mm(L*W),Hole:20*20mm


Rcharlance Micro CAMERA Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.5mm Lens
FOV: 130 degree(2.5mm)
Signal System: PAL / NTSC
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 to 36V
Dimensions: 19mm * 19mm * 19mm
1408-3600KV Motor

KV: 3600KV
Battery (Lipo): 2-4S
Spindle diameter: 14mm
Spindle length: 8mm
Out shaft diameter: 5mm
Motor size: Φ20.5 × 19.6mm
Thrust: 530g (16V 3045 3-blade prop)


Package Included:

PNP version

1 x 140mm Carbon Fiber Frame Kit
1 x OMF4 Flight Control Board
1 x 28A Blheli_S 4 In 1 ESC
1 x Micro FPV Transmitter
1 x Micro CAMERA
4 x1408-3600KV
4 x purple propeller CW
4 x purple propeller CCW
1 x Antenna
1 x Battery plate
1 x Battery strap

BNF version
1 x 140mm Carbon Fiber Frame Kit
1 x Receiver
1 x OMF4 Flight Control Board
1 x 28A Blheli_S 4 In 1 ESC
1 x Micro FPV Transmitter
1 x Micro CAMERA
4 x1408-3600KV
4 x purple propeller CW
4 x purple propeller CCW
1 x Antenna
1 x Battery plate
1 x Battery strap
