JJRC JJPRO - P130 Battler 130 millimetri RC Racing Quadcopter - ARF

JJRC JJPRO - P130 Battler 130 millimetri RC Racing Quadcopter - ARF
Seller: GearBest,


Description:
JJRC JJPRO - P130 Battler is a real warrior, standing out from the majority.
Firstly, this can be told from its aura of solemn camouflage, the color belongs to the army. Then, its unparalleled high-performance propulsion system and unprecedented flight controller. It is a great choice for the intermediate players.

Specifications:
Premium Carbon Fiber Airframe
- The dynamic camouflage color breaks the monotony of colors in a racing drone
- 3K full carbon fiber frame, extremely light and sturdy
- Considerate modular components, easy to maintain and dismantle

1806 2300KV Motor
- The 17g high-torque motor has high-purity copper coil which significantly improves the efficiency
- High RPM bearings and rotors perform reliably, generating an amazing thrust of 200 - 350g
- Supports 2 - 3S LiPo, maximum current 13A, and 3 inch 3045 three-blade propeller

Flycolor 12A ESC
- Fairy Series 12A ESC for multicopters
- Innovative technology of current frequency conversion to drive MOSFET, being smaller, lighter and more efficient
- 8 kinds of motor timing ( 0 - 26.25 degree ) are available, offering you various choices of RPM and torque
- Original algorithms lead to fast processing speed, smooth and linear motor responses
- BLHeli firmware supports Oneshot and upgrades
- 12A maximum continuous current, 18A instantaneous current; supports 2 - 4S LiPo
- Excellent anti-blocking function
- Incorporates 5V 1A BEC and weighs 9.5g

NAZE32 SP Racing F3 DELUXE Flight Controller
- The state-of-the-art flight controller supports Oneshot ESC and more than 8-channel remote control
- Capable of running all the I/O ports at the same time
- Supports onboard black box flight logging and Oneshot ESCs
- With CleanFlight, configurable via a cross-platform GUI ( Windows / OSX / Linux )
- Developer-friendly debugging port ( SWD ) and boot mode selection
- Mini size, only 35 x 35mm, with a weight of 6g

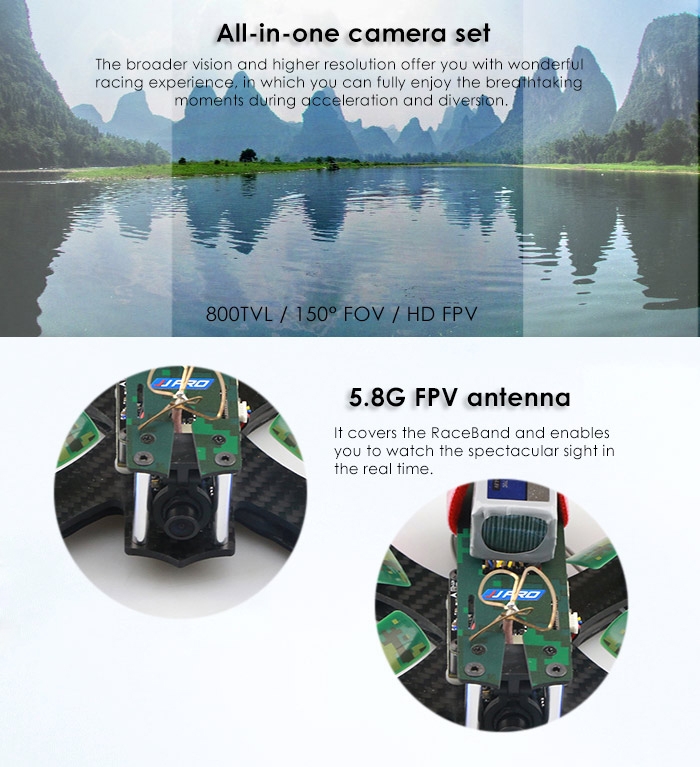

5.8G FPV Camera Set
Contents: camera, transmitter, antenna, and cable
Size: 18 x 16.5 x 8mm ( not including antenna )
Weight: 6.8g
- Camera
Sensor: 1/3 inch CMOS
Lens: M8 800TVL
FOV: 150 degree wide-angle
TV system: NTSC / PAL switchable
Voltage supply: 3.6 - 5.5V
Channels: 40 ( including RaceBand )
- Built-in FPV Transmitter
TV system: NTSC / PAL
Output power: 25W
Operating voltage: 3.6 - 5.5V

Specification

General

Brand: JJRC
Type: Body Frame,Camera Set,ESC,Flight Controller,LED Light,Motor,Power Distribution Board,Propeller,Propeller Clip

Motor

KV: 2300KV
No. of Cells: 2 - 3S LiPo
Max. Continuous Current (A): 13A

Connectivity

Channel: No Transmitter
Transmitter Power: No transmitter included

Battery

Battery (mAh): 11.1V 850mAh
Flying Time: about 5mins
Charging Time (h): less than 120 minutes

Camera

Video Resolution: 800TVL ( horizontal resoultion )
Video Standards: NTSC,PAL

Racing Quadcopter Parameters

Wheelbase: 130mm

Dimension and Weight

Product weight: 0.600 kg
Package weight: 0.650 kg
Product size (L x W x H): 15.00 x 10.00 x 6.50 cm / 5.91 x 3.94 x 2.56 inches
Package size (L x W x H): 25.00 x 20.00 x 10.50 cm / 9.84 x 7.87 x 4.13 inches

Package Contents

Package Contents: 1 x Airframe, 4 x Motor, 4 x ESC, 1 x Flight Controller, 1 x PDB, 4 x LED Light, 1 x FPV Camera Set, 1 x Battery Set, 8 x Three-blade Propeller, 1 x Propeller Puller, 1 x Charger
