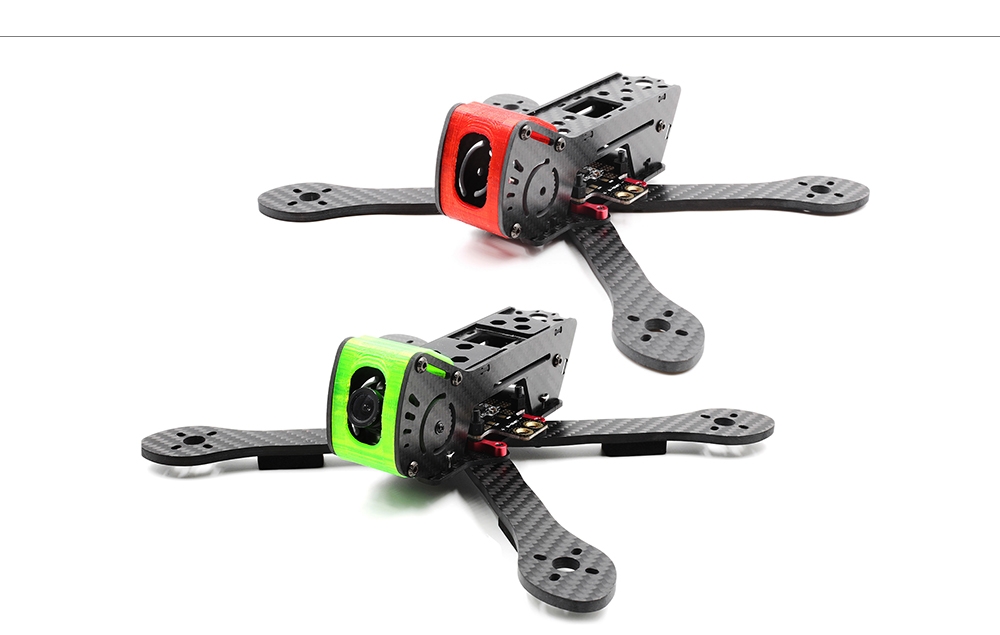

GEPRC AirBus GEP - AX5 215mm DIY Carbon Fiber Frame

GEPRC AirBus GEP - AX5 215mm DIY Carbon Fiber Frame
Seller: GearBest,


Main Features:
- 3K full carbon fiber material, strong but light
- CNC aluminum posts make it even stronger and facilitate the maintenance
- Camera mount tilted at 35 degree, which makes it easy to install the GoPro Session
- 3D TPU printed cover for the aerial camera effectively reduces the wind drag
- Good maneuverability with a wheelbase of 200mm and the true "X" configuration
- Protective motor seat, wide enough to diminish the damage of motors from collision
- Adjustable lens angle of 0 - 55 degree
- With PDB and 5V 3A / 12V 500mA BEC
- LED taillights can be controlled via CleanFlight and BetaFlight

Specifications:
Model: GEP - AX5
Weight: 116g
Wheelbase: 215mm
Adjustable lens angle: 0 - 50 degree
Central board: 4mm
Lateral board: 2mm
Top board: 1.5mm

Recommended configuration
Flight controller: F3 / Naze32 / CC3D
Motor: 2204 / 2205 / 2206 / 2305
ESC: 20 - 30A
Propeller: 5 inch
Battery: 4S 1300mAh

Specification

General

Brand: GEPRC
Type: Frame Kit

Racing Quadcopter Parameters

Wheelbase: 215mm

Dimension and Weight

Product weight: 0.116 kg
Package weight: 0.285 kg
Product size (L x W x H): 21.50 x 21.50 x 3.00 cm / 8.46 x 8.46 x 1.18 inches
Package size (L x W x H): 25.00 x 22.50 x 5.00 cm / 9.84 x 8.86 x 1.97 inches

Package Contents

Package Contents: 1 x Carbon Fiber Frame Kit, 1 x PDB, 1 x LED Board, 2 x Strap

Product Safety Disclaimer:
We do not accept any responsibility or liability for misuse of this or any other product. All our products are extensively tested to comply with rigorous and strict QC standards. For certain products (e.g. toys, knives, etc.), we recommend proper supervision as we cannot be held liable for misuse or accidents.

Note:
Product photography is for illustration only. The product sold may have minor physical differences depending on manufacturer specifications, production batch, etc. Customers should carefully consider this before purchase.

Small Parts Disclaimer:
These toys contain small parts, not for children under 3 years in case of swallowing or choking . We do not accept any responsibility or liability for misuse of this or any other product.
