FrSky XMPF3E F3 EVO Brushed Flight Controller

FrSky XMPF3E F3 EVO Brushed Flight Controller
Seller: GearBest,


Main Features:
- F3 EVO flight controller with built-in XM Plus receiver module
- Features the latest sensor technology of accelerometer, gyro, compass and barometer
- XM Plus receiver is a one-way receiver ( no telemetry )
- F3 EVO by SBUS ( CH8 is RSSI ) to UART2 Rx of F3 EVO
- 6 PWM output signal lines for ESCs and servos
- Arranged for easy wiring on standard pin headers

Specifications:
Dimension: 36 x 36 x 6mm with 30.5mm spacing mounting holes
Hardware: STM32F303 CPU ( 72MHz inc FPU ), MPU9250 ( accelerometer / gyro / compass ), BMP280 barometer for F3 EVO, CC2510 CPU for XM Plus receiver
Weight: 7g
Channels: 16CH ( CH 8 - RSSI ) by SBUS to UART2 Rx of F3 EVO
Operating voltage range: 4.0 - 10V
Operating current: 100mA at 5V
Compatibility: FrSky Taranis X9D / X9E / Horus X12S / XJT in D16 Mode
Firmware upgradeable: yes

Click here to download the user manual.

Specification

General

Brand: FrSky
Type: Receiver

Dimension and Weight

Product weight: 0.007 kg
Package weight: 0.021 kg
Product size (L x W x H): 3.60 x 3.60 x 0.60 cm / 1.42 x 1.42 x 0.24 inches
Package size (L x W x H): 12.00 x 17.00 x 1.00 cm / 4.72 x 6.69 x 0.39 inches

Package Contents

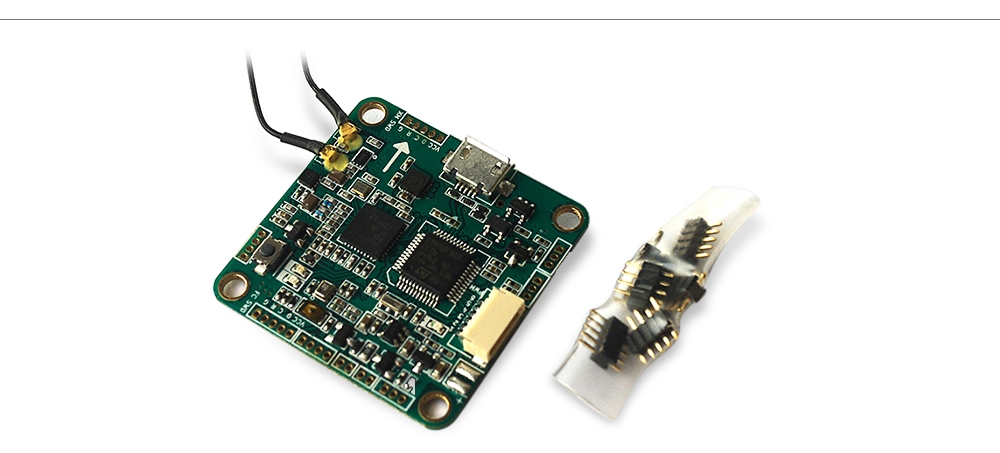

Package Contents: 1 x F3 Flight Controller, 1 x Pack of Accessories

Product Safety Disclaimer:
We do not accept any responsibility or liability for misuse of this or any other product. All our products are extensively tested to comply with rigorous and strict QC standards. For certain products (e.g. toys, knives, etc.), we recommend proper supervision as we cannot be held liable for misuse or accidents.

Note:
Product photography is for illustration only. The product sold may have minor physical differences depending on manufacturer specifications, production batch, etc. Customers should carefully consider this before purchase.

Small Parts Disclaimer:
These toys contain small parts, not for children under 3 years in case of swallowing or choking . We do not accept any responsibility or liability for misuse of this or any other product.
