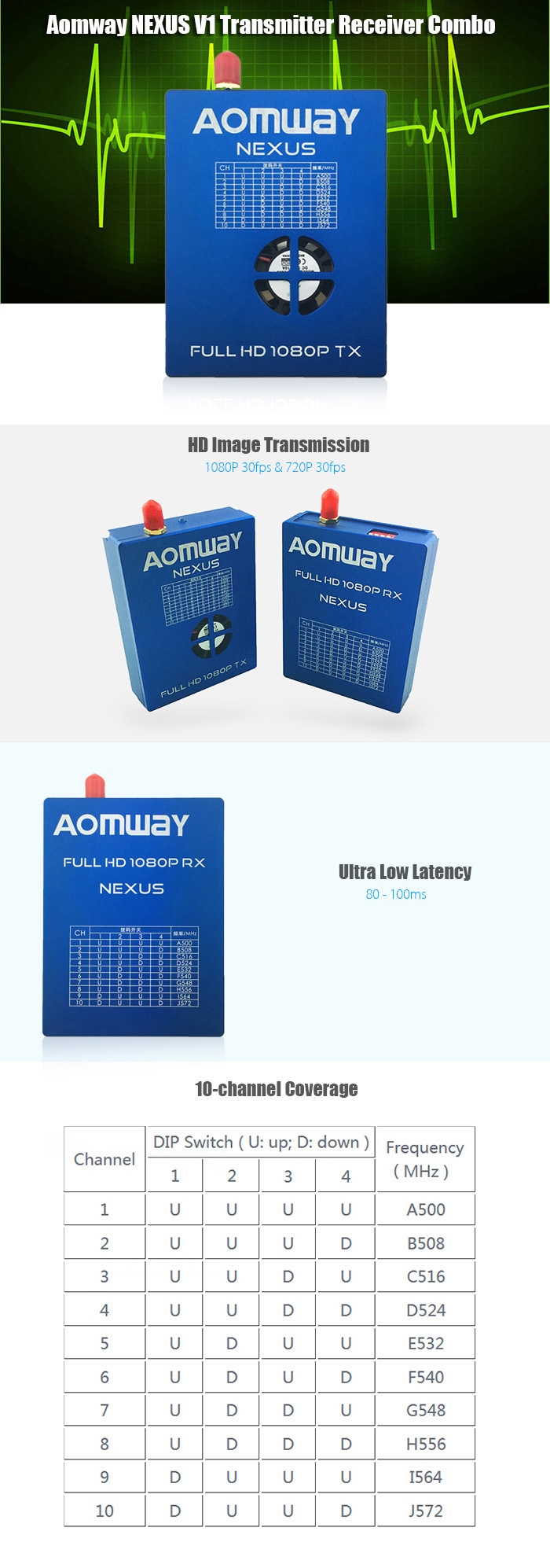

Aomway NEXUS V1 Transmitter Receiver Combo

Aomway NEXUS V1 Transmitter Receiver Combo
Seller: GearBest,


Description:
As an HD image transmission system, Aomway NEXUS V1 features advanced video processing technique and efficient coding algorithms, ensuring the coding efficiency and stability. The latency is barely observable, only 80 - 100ms, which makes it a practical tool to get 1080P full HD image.

Specifications:
Transmitter
Working bandwidth: 8MHz
Channels: 10CH
Input voltage: 3 - 4S LiPo ( DC 10 - 17V )
Antenna output: SMA 50 ohms ( not included )
HDMI input: standard Type A, 1080P 30fps and 720P 30fps
Max. power consumption: 9W / +39.6dBm
LED indicator: red - power; blue - signal
Built-in fan: 2507 high-speed fan
Working temperature: 0 - 80 Deg.C

Receiver
Working voltage: DC 7 - 24V
HDMI input: standard Type A, 1080P 30fps and 720P 30fps
Working bandwidth: 8MHz
Channels: 10CH
LED Indicator: red - power, blue - signal
Latency: 80 - 100ms ( not including the camera and monitor )
Sensitivity: -82dBm
Antenna output: SMA, 50 ohms ( not included )
Power consumption: less than 4W
Working temperature: 0 - 60 Deg.C
Auto searching signal when it is turned on and the LED flashes; when it receives the signal, the LED turns solid; if there is no signal, the LED will turn off.

Specification

General

Brand: Aomway
FPV Equipments: AV Receiver,AV Transmitter

Dimension and Weight

Product weight: 0.103 kg
Package weight: 0.176 kg
Product size (L x W x H): 8.50 x 6.40 x 1.90 cm / 3.35 x 2.52 x 0.75 inches
Package size (L x W x H): 12.00 x 17.00 x 3.00 cm / 4.72 x 6.69 x 1.18 inches

Package Contents

Package Contents: 1 x Transmitter, 1 x Receiver
